Joint t-SNE for Comparable Projections of Multiple High-Dimensional Datasets

Abstract:

We present Joint t-Stochastic Neighbor Embedding (Joint t-SNE), a technique to generate comparable projections of multiple high-dimensional datasets. Although t-SNE has been widely employed to visualize high-dimensional datasets from various domains, it is limited to projecting a single dataset. When a series of high-dimensional datasets, such as datasets changing over time, is projected independently using t-SNE, misaligned layouts are obtained. Even items with identical features across datasets are projected to different locations, making the technique unsuitable for comparison tasks. To tackle this problem, we introduce edge similarity, which captures the similarities between two adjacent time frames based on the Graphlet Frequency Distribution (GFD). We then integrate a novel loss term into the t-SNE loss function, which we call vector constraints, to preserve the vectors between projected points across the projections, allowing these points to serve as visual landmarks for direct comparisons between projections. Using synthetic datasets whose ground-truth structures are known, we show that Joint t-SNE outperforms existing techniques, including Dynamic t-SNE, in terms of local coherence error, Kullback-Leibler divergence, and neighborhood preservation. We also showcase a real-world use case to visualize and compare the activation of different layers of a neural network.

Materials:

Overview:

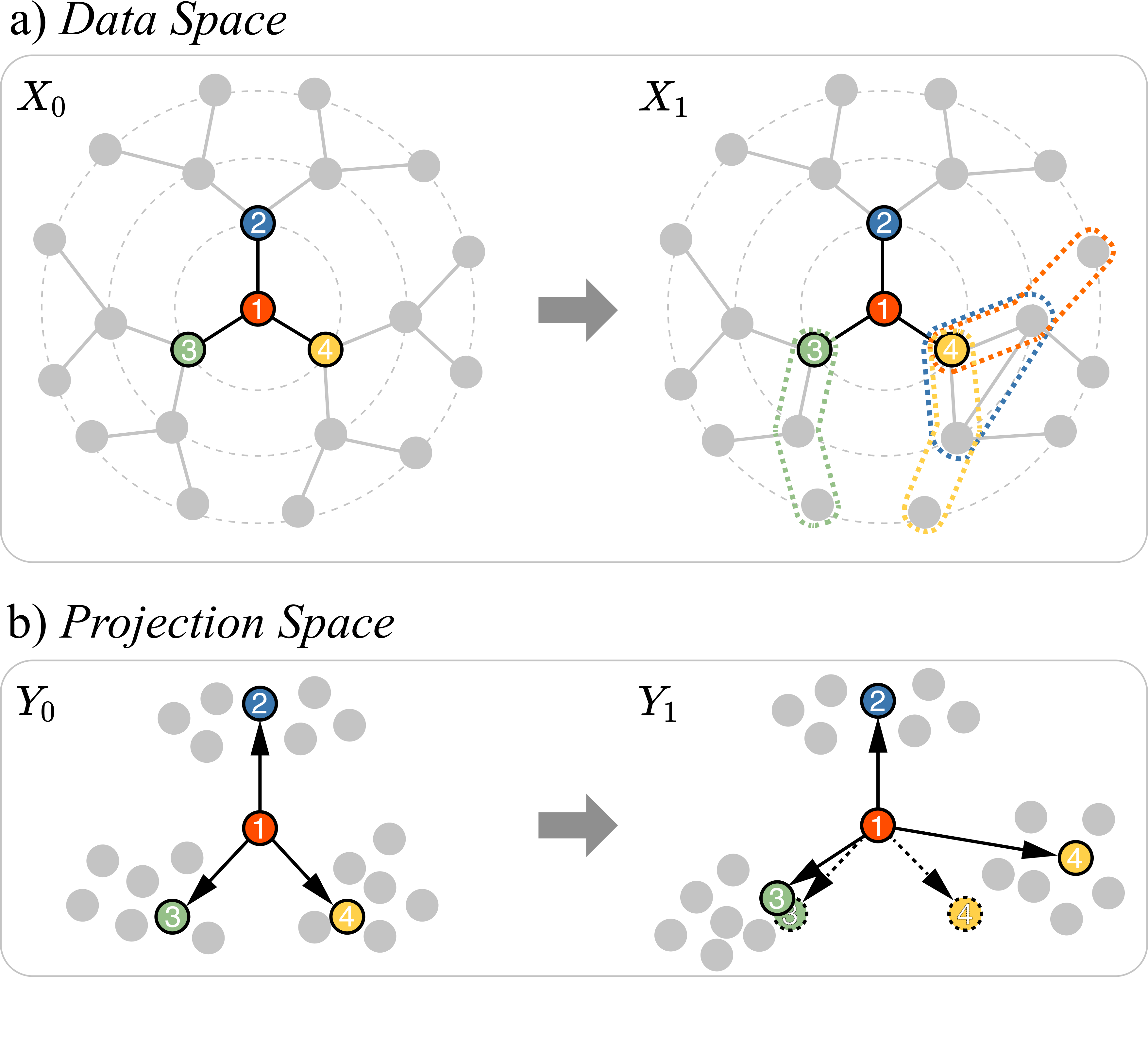

Figure 2: Technical Illustration of Joint t-SNE. Note that we only consider 3-node graphlets for simplicity. a) Some changes happened between X₀ and X₁ . Several points broke the neighborhood relationship with the original cluster. Joint t-SNE measures the similarity of local structures to find such changes and computes edge similarities (S_e12 > S_e13 > S_e14 ). b) Using edge similarity as the weight of the corresponding vector constraint, Joint t-SNE generates projection Y₁ , which keeps the relative position of points in Y₀ accordingly.

Results:

Figure 3: Comparison of the MNIST dataset projection of three t-SNE techniques. Note that since the effect of long-range interference of Dynamic t-SNE was too serious in this case, we did not use its result for t = 0 as the initial projection for other methods as we did in other cases. a) Projecting each frame separately in Equal-initialization t-SNE could faithfully reveal the underlying structure. But when used for comparison tasks, the results can be misleading; for example, people can think that the red cluster for digit 2 changed and the purple cluster of digit 3 moved to the green cluster of digit 1, but the ground truth is the opposite. b) In Dynamic t-SNE, the changes between two frames are subtle even though there were substantial changes. These projections are too consistent, sacrificing fidelity. c) Joint t-SNE successfully detected the changes in topology while preserving the local structure of the red cluster for digit 2 where no change was made. d) Comparison of local subspace shows that Dynamic t-SNE created an artifact of digit 2 on the right side, whereas other methods did not.

Figure 4: Comparison of the VGG dataset projections of four t-SNE techniques. a) and b) t-SNE and Equal-initialization t-SNE produced faithful but inconsistent projections. See the red and pink clusters moving around the center. c) Dynamic t-SNE produced projections that are too rigid to reflect abrupt changes in topology. For example, the green and light green clusters remain separated at the end, failing to escape from their initial positions. d) Joint t-SNE generated more faithful projections that are robust to such abrupt changes. See the points from a pair of classes (two classes with the same hue) gather as in the t-SNE and Equal-initialization t-SNE projections while providing visual consistency.

Figure 5: Comparison of the effect of hyperparameters in Dynamic and Joint t-SNE. We used the result from Dynamic t-SNE as the projection of the first time frame for ease of comparison. For Dynamic t-SNE, as λ increases from 0.01 to 0.1, the effect of long-range interference at t = 0 becomes more obvious as the red and purple clusters gets closer, which is a future change. The same is true for smoothing effect at t = 1. Joint t-SNE is robust to the change of γ; see the red and purple clusters fully overlap regardless of γ.
